This blog article is for Brother knitting machines (KH521, KH531 and KH551) that have a needle selection mechanism with four push buttons.

When I needed to replace the push-buttons in the Brother KH551 knitting machine, I could not find any information on how to do it. I could also not find a service manual for 4-push button knitting machines.

Thus, I had to figure out on the go how to do it and I successfully did it already three times. Since I do not do it all that often, out of fear of forgetting certain details, I documented the whole process and outlined it here and also in a video.

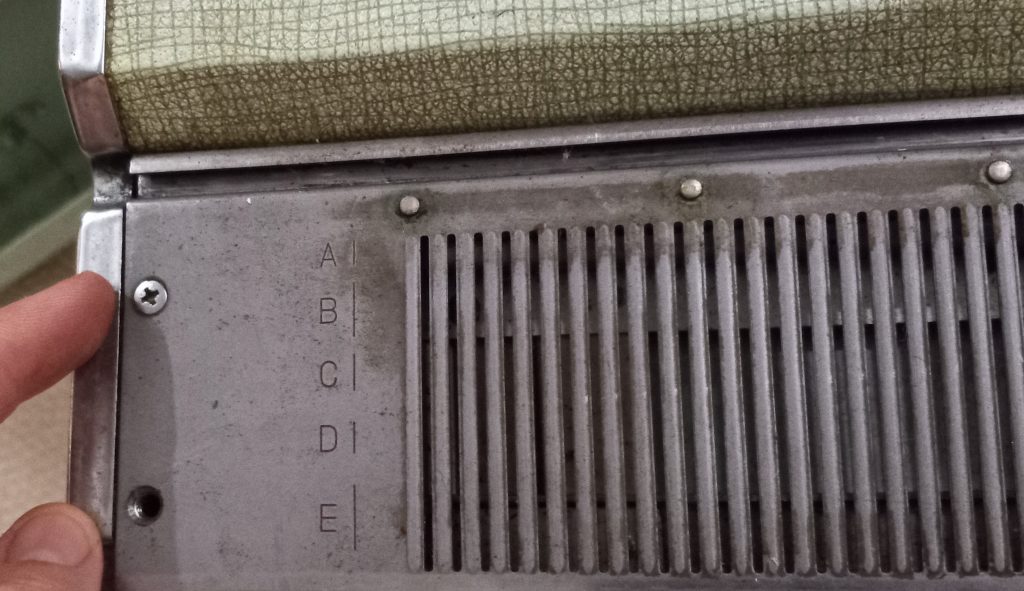

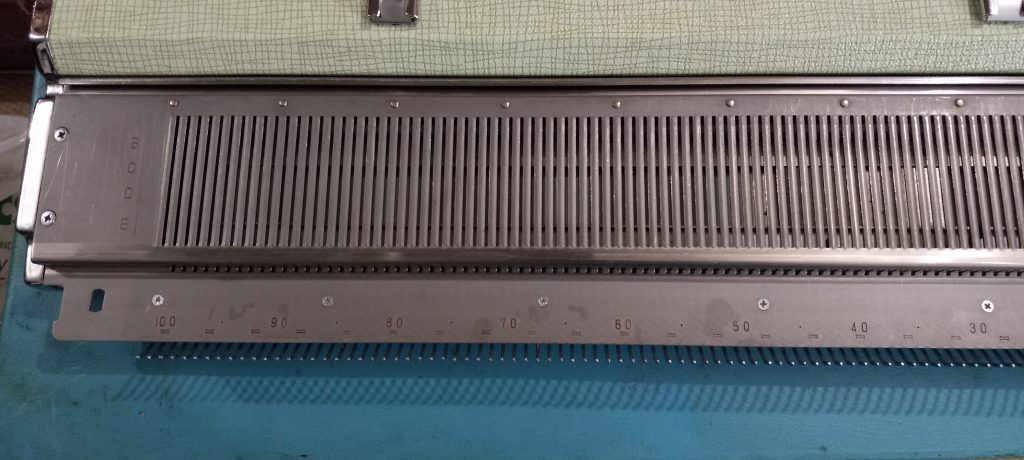

I started with removing the side screws to separate the needle bed from the case.

Removed these screws …

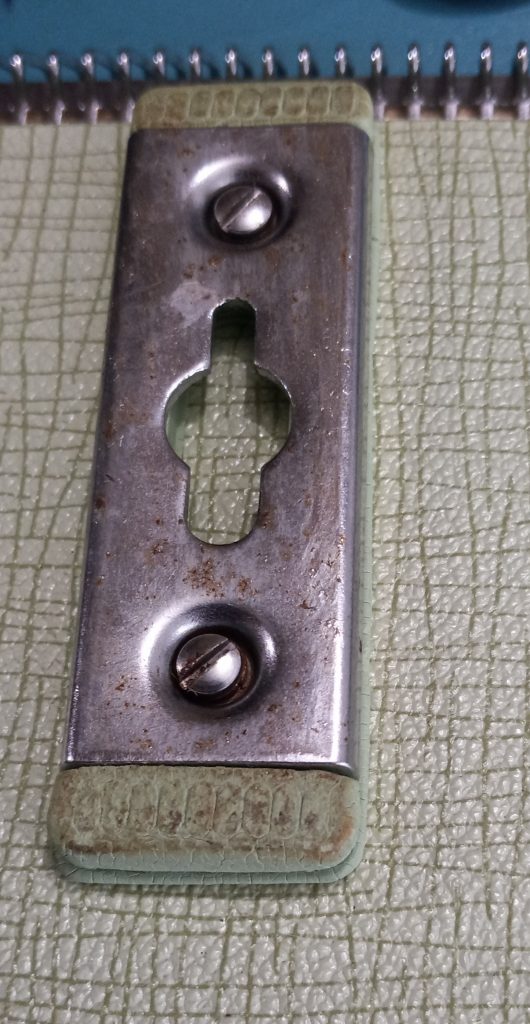

… and these too (from the table bracket holders) …

… and then separated the needle bed from the case.

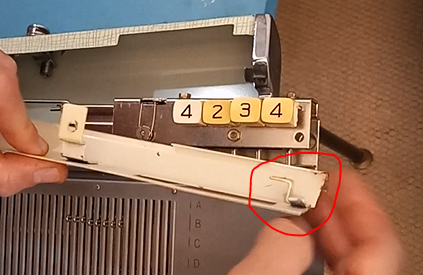

The cover for the button mechanism can be easily removed: there is one screw on the right-hand side, kinda underneath …

…and one in the middle of the cover, easily seen from the back.

Flip the bed and remove the button-rod mechanism by unscrewing all screws on the back. The two screws marked below hold the whole mechanism together while all others simply attach the mechanism to the needle bed.

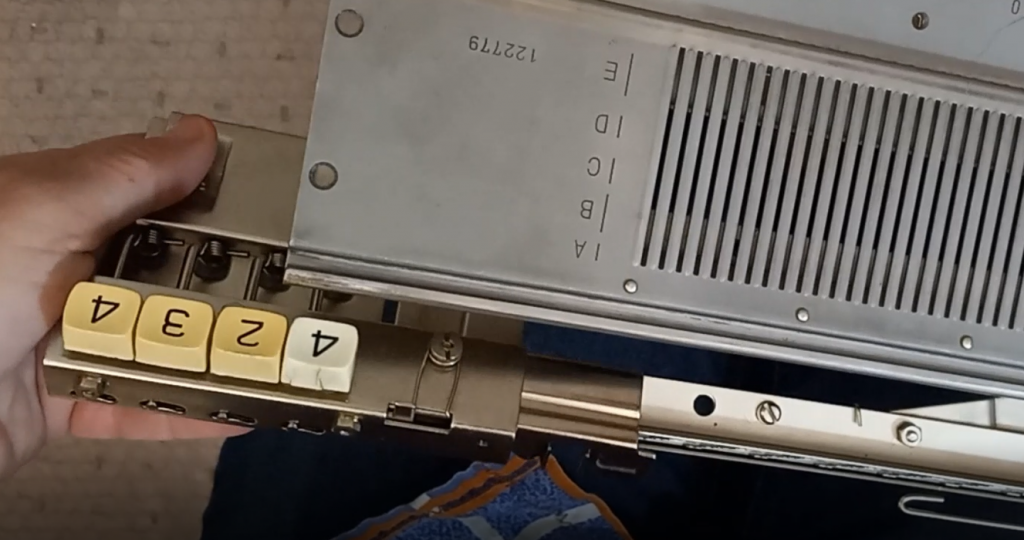

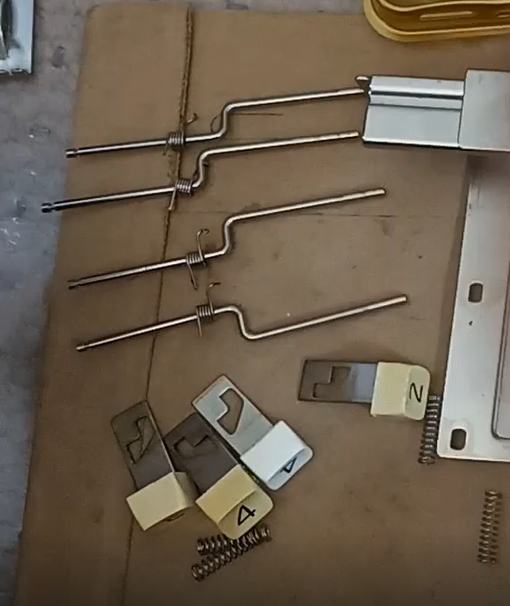

After these scores are removed, collect the following parts: 4 rods with torsion springs, four buttons and four tension springs.

Next steps are reinserting the pushbuttons back into the patterning assembly.

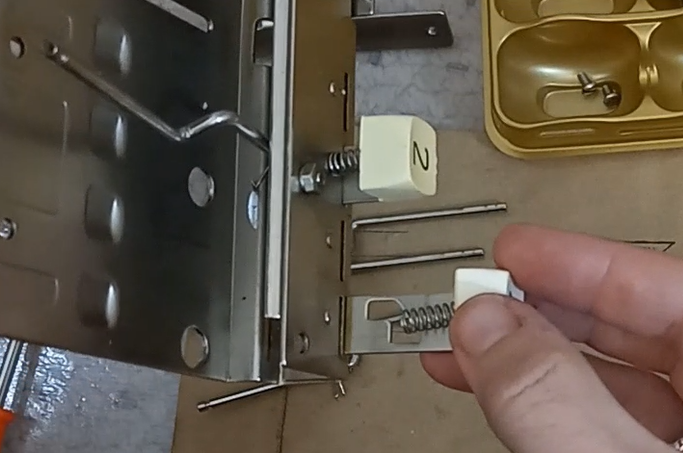

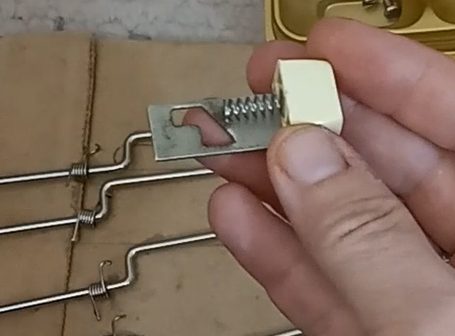

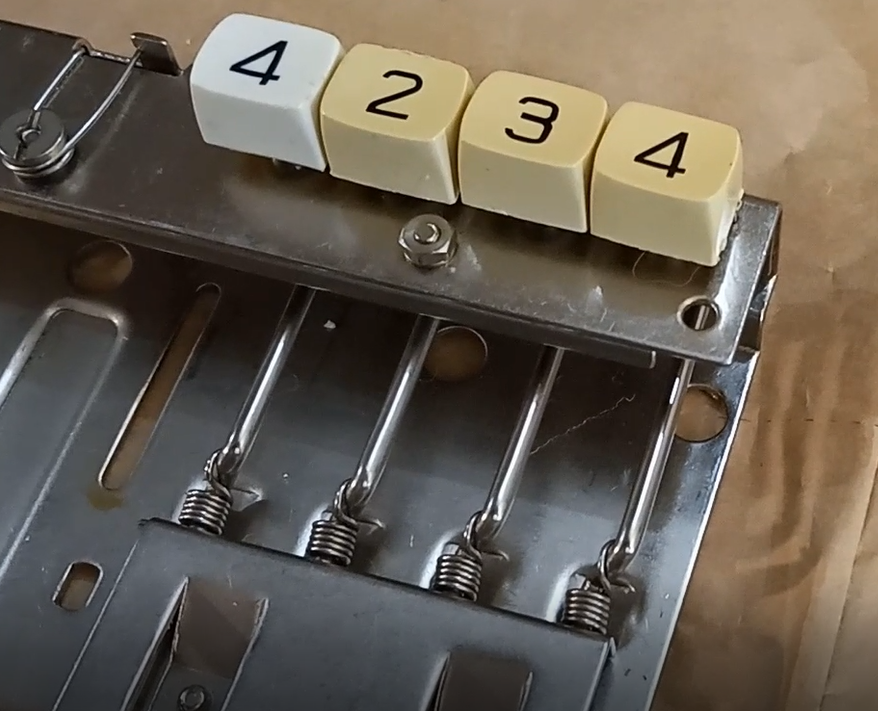

First, insert the tension spring into the pushbutton and then inside the holding plate.

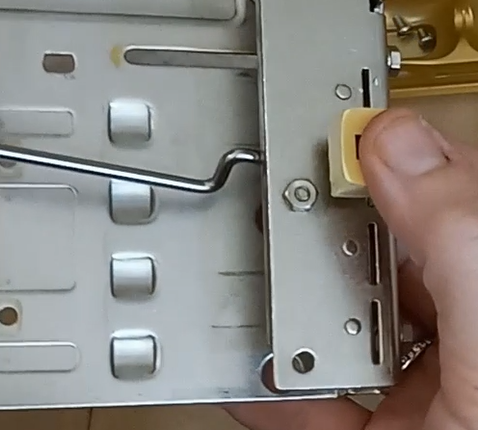

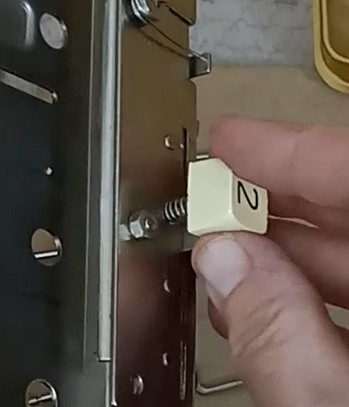

There is an opening on the flat portion of the button that needs to go through the vertical panel of the holding plate. Insert the rod into that hole.

Repeat with the rest of the buttons.

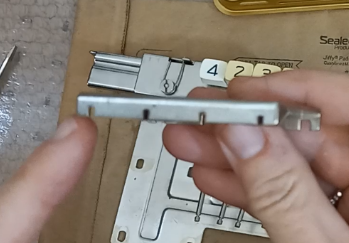

The small holding plate has narrow and wider grooves on the opposite sides.

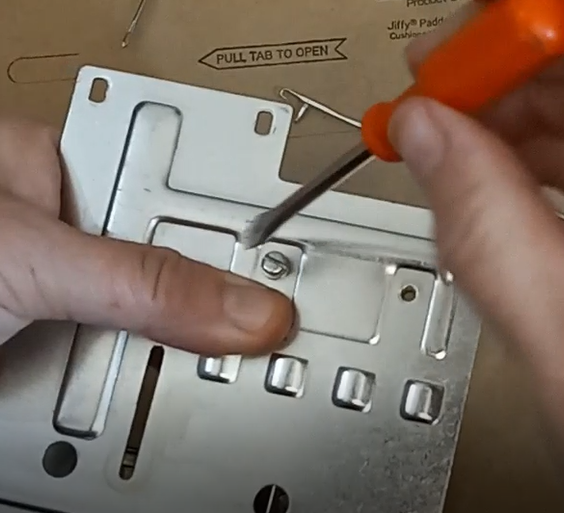

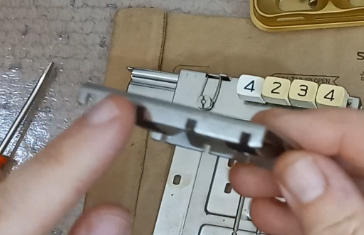

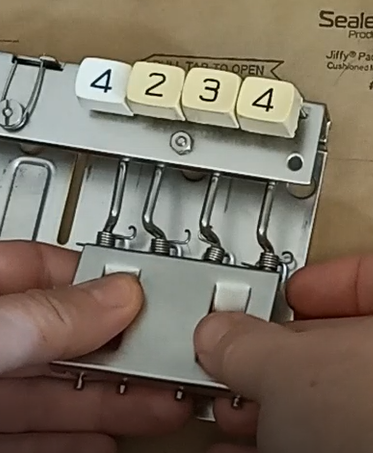

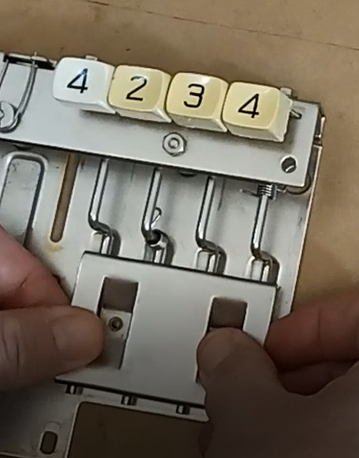

Wider grooves go on top of the rods next to the elbows an narrow grooves go onto the ends of the rods. Press the plate firmly, flip (while holding firmly) and attach the screws.

Once these two most critical screws are in, we can stop holding them firmly.

We now flip the assembly again to adjust the positions of the torsion springs.

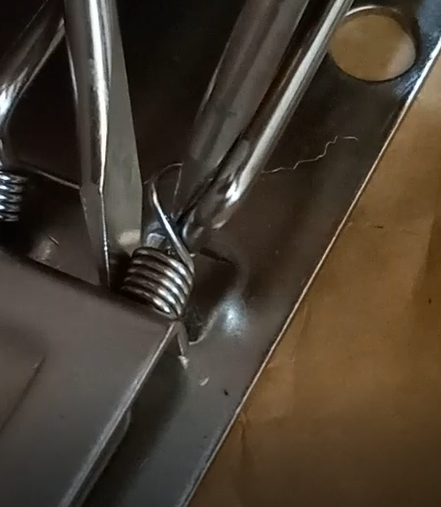

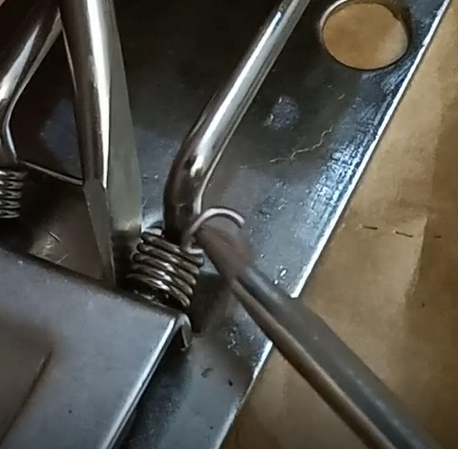

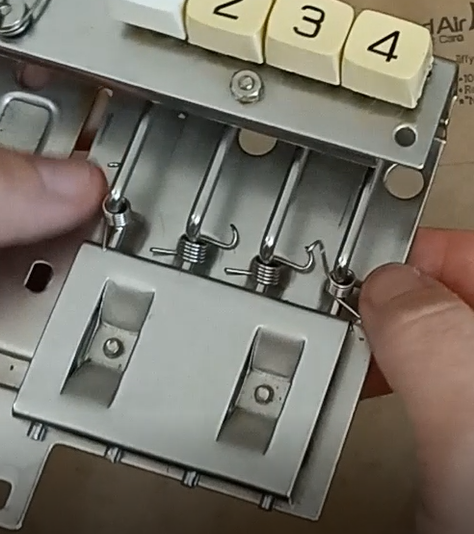

While holding (very tight) the straight end of the spring with one screwdriver, we stretch the torsion spring on the curled-end side and hook the spring on the rod. It might take you several attempts because it is hard and awkward to do. Don’t get discouraged. Repeat for the remainder of the rods/springs.

Once the pushbutton assembly is finished, we’ll need to put it back into the bed.

Just follow the first steps in the reverse order. If confused – watch my video again. Or follow the outlined steps below.

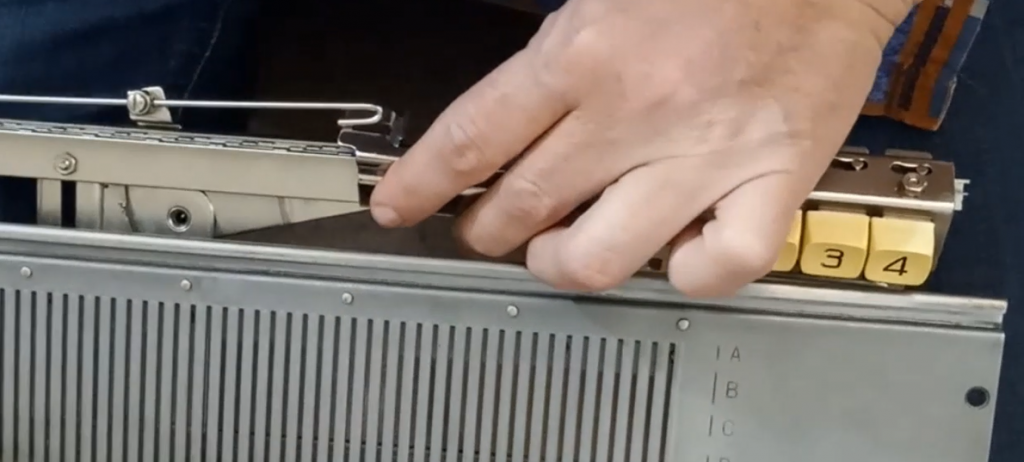

Insert the plate with buttons into the bed at an angle, …

…attach to the hook …

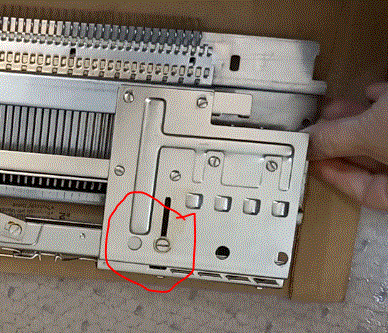

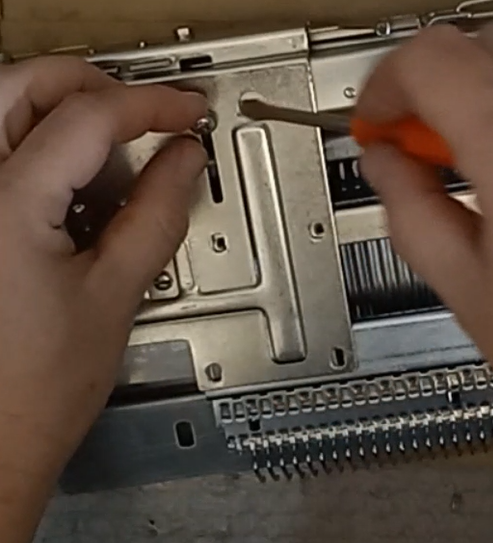

and insert the remaining screws (on the back) into the push-button assembly. Watch for the screw marked in red below. This should not be too tight otherwise the mechanism that governs the selecting strips might not move as freely. If you experience it, loosen up that screw.

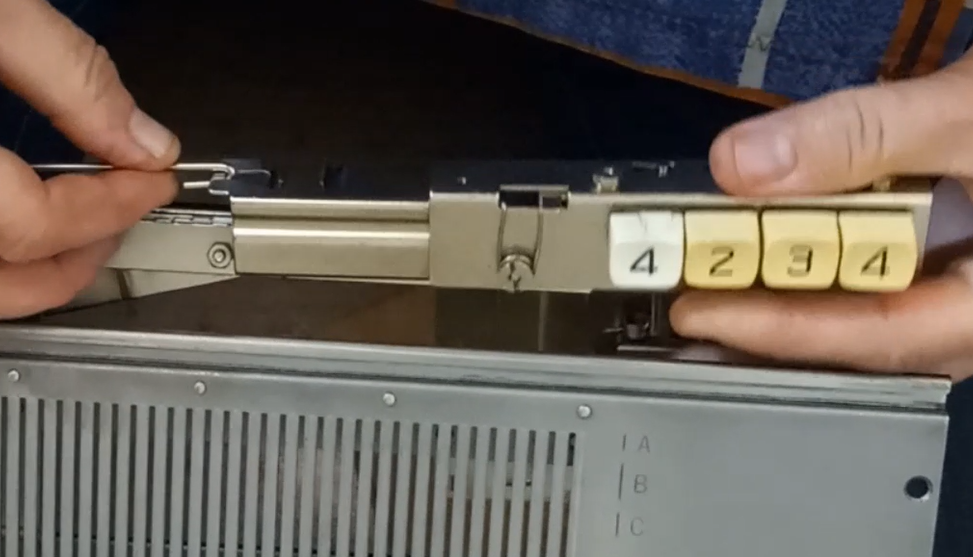

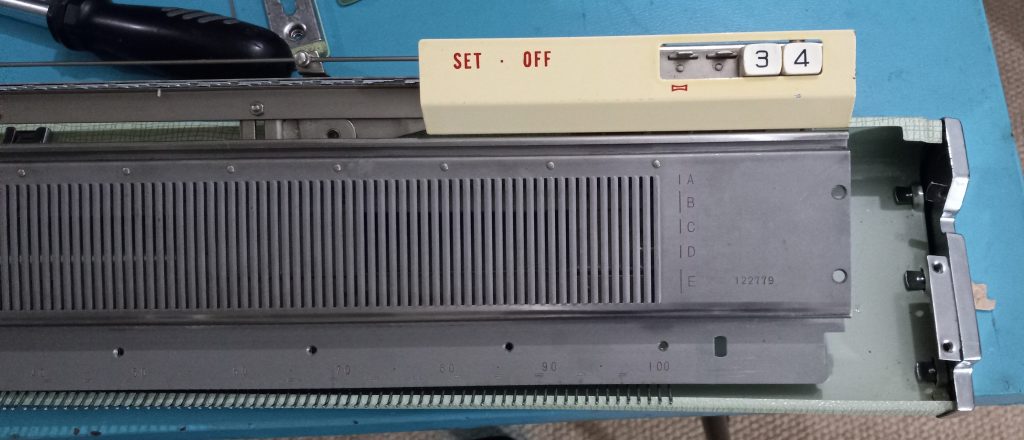

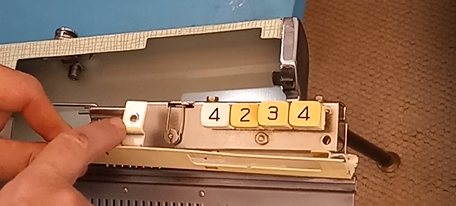

Before inserting the needle bed into the case, check if your buttons move freely.

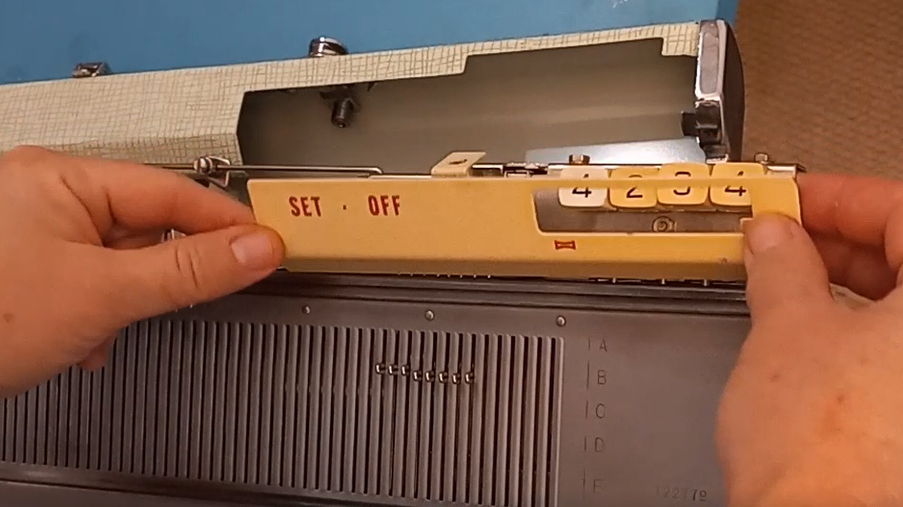

Then reattach the cover.

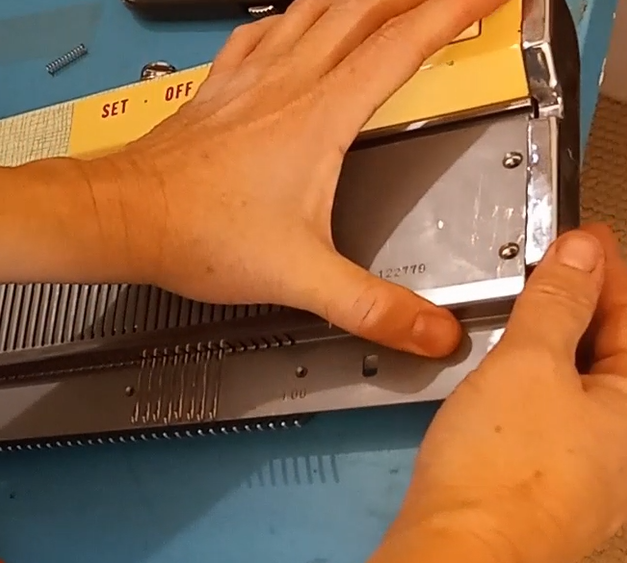

Insert the needle bed into the case, and reattach the screws on the needle bedside.

Now you can test if your button selection mechanism works by inserting 8 or so needles and activating the pushed-in buttons by the ratchet tool.

Good luck and hope this was useful.
